MR line

DESCRIPTION

download prospectus

Our objective in developing the MR line was to create robust, compact mixers conceived for intensive use, suitable for all dough types (even stif ones), that did not require adjustments or maintenance over the years. Escher Mixers presents two MR lines of removable bowl mixers: MR Professional 80-300 Kg and MR Professional 350-500 Kg: with taper bowl locking and motion system. The new taper bowl locking and motion system is technically superior to the traditional systems as it utilizes a taper coupling to join the machine and the trolley. The trolley is locked by means of a taper shaft that, as it ascends, centres the bowl and moves it into the working position. The hydraulically controlled cone engages under the bowl, maintains constant pressure during use and eliminates any possibility of slippage or wear. The taper shaft gives rotating motion to the bowl and guarantees a constant number of bowl revolutions thereby increasing the dough quality and machine performance. The motion system is noiseless and free of mechanical play. Elimination of the oscillating movements of the head while mixing a fully loaded bowl and with particularly dry doughs. This feature translates into a constant distance of the spiral from the bottom of the bowl to improve the quality of the dough mixture and sheeting.

Features and Benefits

  • Drive system – Premium – increased power and torque, suitable for industrial applications, suitable for markets using 60Hz (number of spiral rotations unaltered);
  • Extremely easy to handle removable trolley - less effort required to operate;
  • Machine body designed to increase torsional resistance - increased life of machine and its parts;
  • Machine entirely designed with the latest 3D design systems with relative resistance calculations - modern technical solutions;
  • Numerous options available – versatility and broader range of machine applications;
  • Machine can be constructed entirely or partially from stainless steel - suitable for all work environments;
  • Easy-to-clean surfaces - enhanced hygiene;
  • Variable drive control – Vario Drive
  • System - the bowl and spiral drive can be varied to adapt the machine for different dough types;
  • Quick tool change system - the operator can change tools easily, quickly and safely;
  • Silent bowl drive and continuous bowl motion;
  • Easy bowl insertion and automatic coupling.

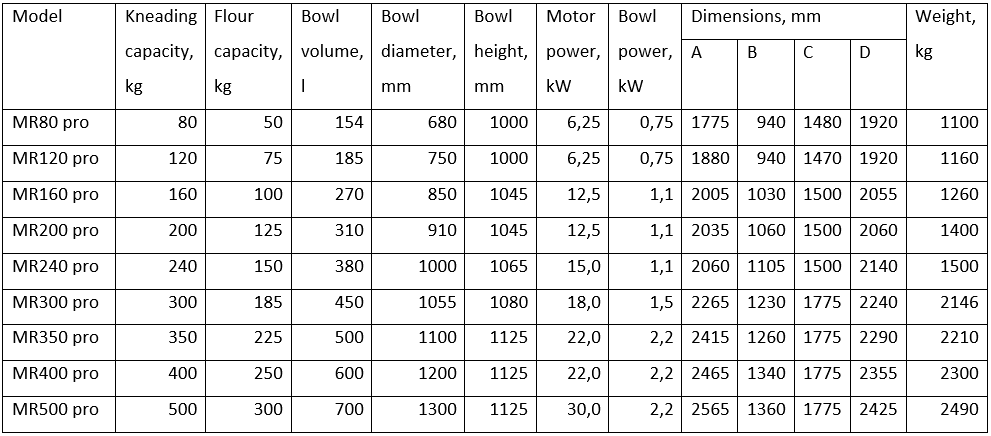

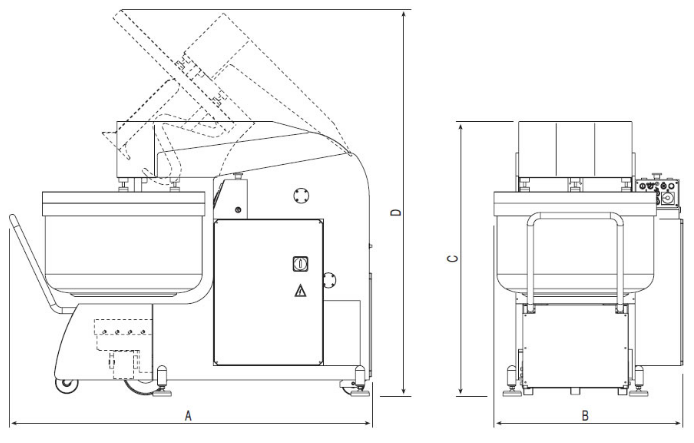

Technical characteristics and dimensions


Options available:

  • Vario Drive. To make the machine more flexible in its application we have developed a VarioDrive system that allows you to vary the number of spiral and bowl rotations. Therefore, the same machine can both mix and knead different products.
  • Touch screen. The machines are also available in a completely computerised version for management of work programs and additional parameters such as: tool speed, dough temperature, power consumption in Amps. With this machine you can also verify the preset technical parameters and the error alarms.
  • Tools. Tools can be either fixed or removable, with the quick change system option. In this case, the operator can easily remove the tool and replace it with a different one. The machine can therefore be equipped with two or more tools which can be used according to the different types of recipes.
